Dual Valve seals diagram

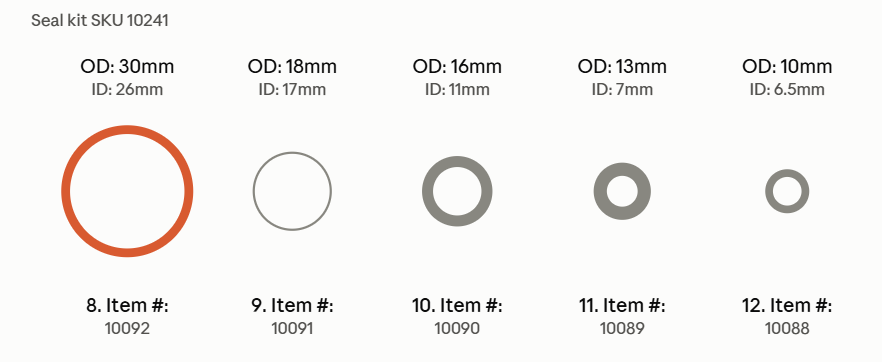

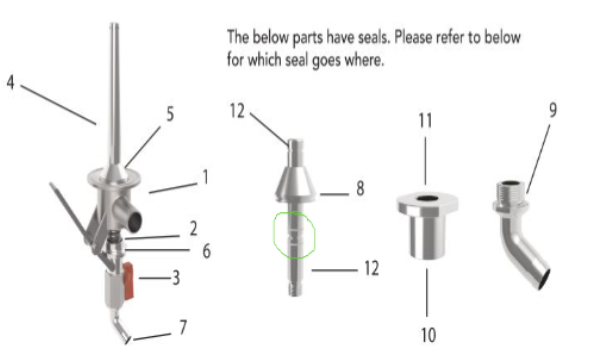

The diagram below shows where the seals for SKU10241 - Grainfather GF30 Fermenter Dual Valve Tap Seals are placed.

Please note that the cone plug seal is not included in this kit; it is SKU10333: 2" Tri-Clamp Gasket (Sealing O-Ring)
