What's included
The G30 seals pack contains the following seals:
| Where it goes | Seal type and size |
|---|---|
| Overflow pipe to check valve | O-ring OD16 × 2.5mm |
| Overflow pipe to 1/4" valve | Flat Ø16 × Ø8 × 5.5mm |
| 1/4" valve to check valve | O-ring OD16 × 2.5mm |
| Inlet pump nut to G30 body | Flat Ø25 × Ø16 × 2.4mm |
| Thermowell to G30 body | Flat Ø25 × Ø16 × 2.4mm |
| Inlet pump nut to pump inlet pipe | O-ring OD16 × 2.5mm |
Where each seal goes

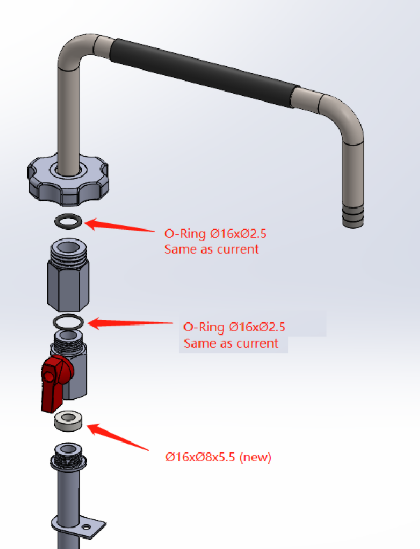

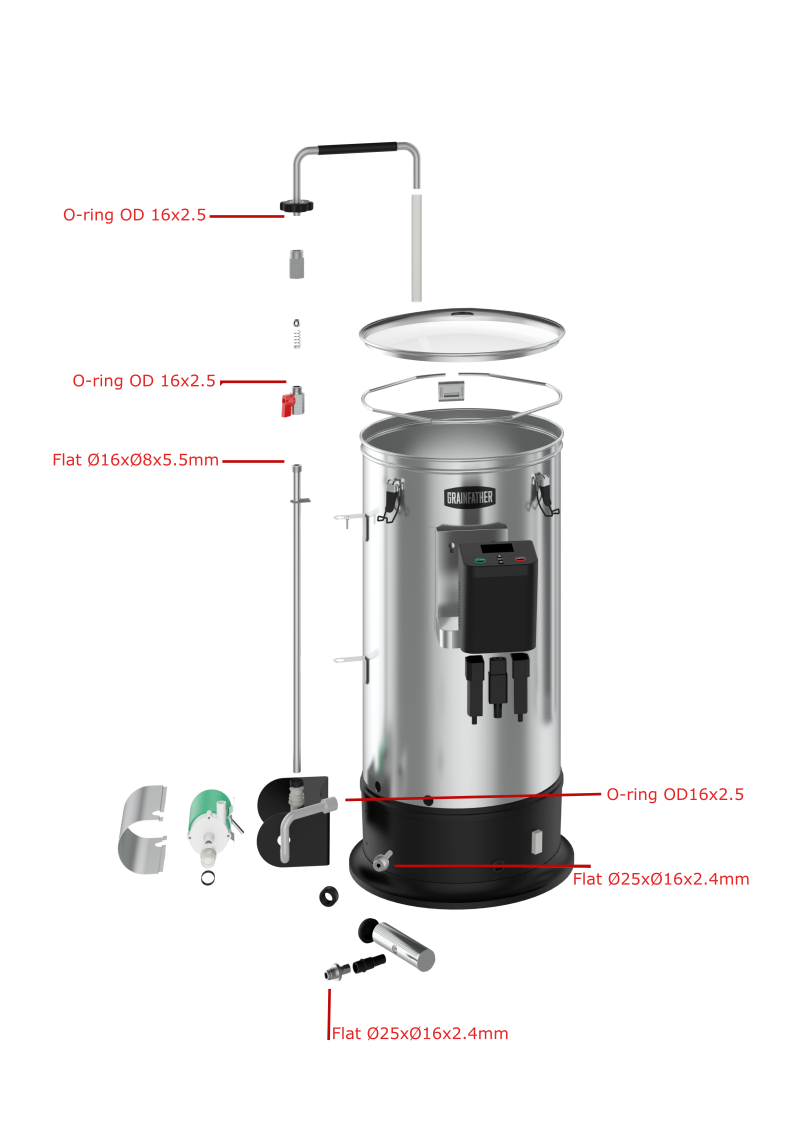

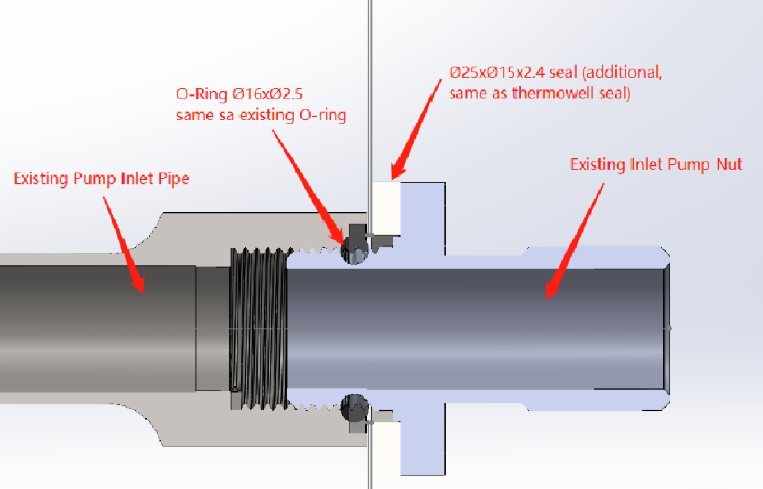

The diagrams below show where each seal should be placed.
